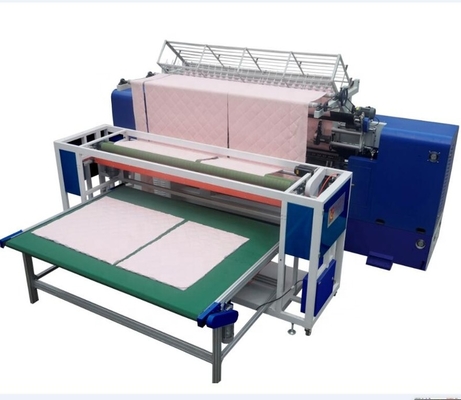

Computerized Multi Needle Quilting Machine With Edge Cutting Device Quilt Production Line
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Not Available |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | Engine, Bearing, Motor, Gear | Condition: | New |
| Place Of Origin: | Guangdong, China | Brand Name: | Yuxing |
| Max Sewing Speed: | 1200r/min | Max Sewing Thickness: | 50mm |
| Number Of Head: | Multi-needle | Moving Style: | Frame Moved |
| Voltage: | 220v/380v | Power: | 6.5KW |
| Dimension(L*W*H): | 4730*1750*1700 | Weight: | 6000 |
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Belongs To: | Computerized Multineedle Quilting Machine For Comforter |

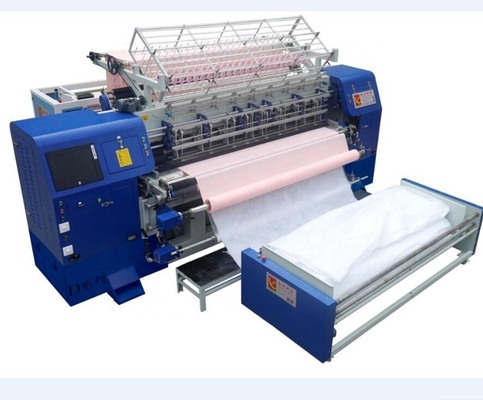

Computerized shuttle(lock stitch) multi-needle quilting machine
YXS-96-3D
Product Description

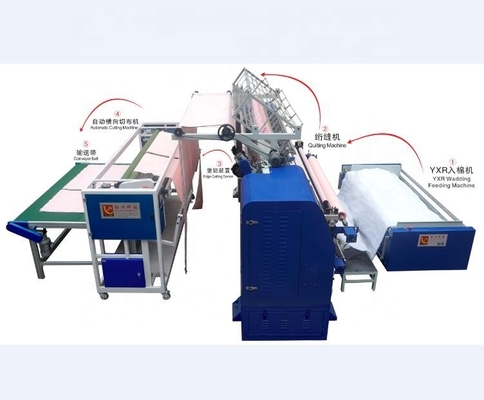

This multi needle quilting machine and cutting machine, if connecting with cotton opening machine and carding machine, it will be a full quilt production line. From cotton to wadding to quilting and cutting. It will save much labor cost and time. Besides it can also be used for bedspread, pillow case, cushion production.
| Model name | YXS-96-3D #10 |
| Dimension(L×W×H) (mm) | 4730*1750*1700 |
| Needle bar quantity | 3 |
| Quilting width (mm) | 2450mm |
| Needle row distance (mm) | 152.4 |
| Needle distance (mm) | 25.4 |
| X-axis movement (mm) | 254 |
| Max. thickness of quilting (mm) | 50 |
| Stitch size (mm) | 2~8 |
| Yield (M/H) | 10~240 |
| Type of needle | #14,16#,19# |
| Speed of main shaft(RPM) | 500~1200 |
| Total power required | 6.5KW |
| Voltage |
380V/50HZ; 220V/60HZ |
| Gross weight | 5.8 tons |

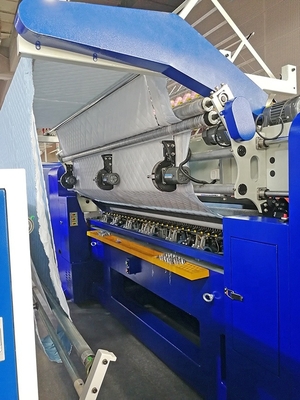

Edge cutting device
It is to cut the edge of quilted material, standard assessory is 3 blades. Each blade has one motor.
 |
Model | Cutter series |
| Power | 1kw | |
| Voltage | 380v/50hz |
Cross cutting machine
It is to cut the quilted material at the horizontal direction.
|
Model |
Thickness |
Cross cutting width |
Cutting speed | Power | Voltage | Size(MM) | Weight |
| CS-94A | 50MM | 50MM-2500MM | 5M/MIN | 0.65KW | 380V 50HZ | 3250*2000*1800 | 500KG |
Wadding feeding machine
It is to feed in the rolled wadding into machine smoothly.
|
||||||
|
Model
|
Weight
|
Width of wadding
|
Speed
|
Power
|
Voltage
|
Size(mm)
|
|
YXR-2500
|
300KG
|
2600MM
|
10M/MIN
|
0.2KW
|
380V/50HZ
|
2870*1070*710
|
Function of quilting machine
1. Fuselage and beam and foot are reinforced, which help machine works more stably with high speed..

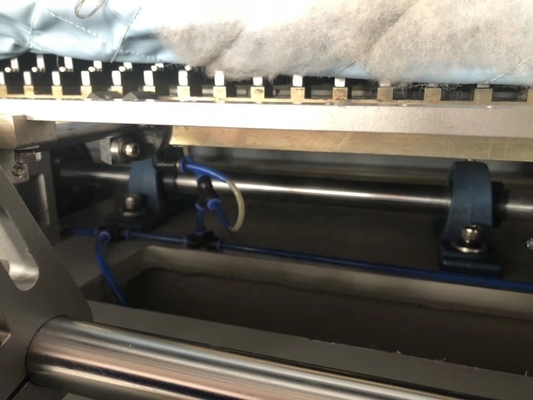

2. Needle bar running with needle bar frame,no need to add extra lube, avoid the materials be soiled by lube.
3. Firm and durable needle bar frame structure , so that to reduce the cost of maintenance.
4. X and Y axis are driven by servo equipment. Principal axis uses the frequency conversion device
5. The automatic oil refueling function can make the machine maintenance easier and prolongs the machine lfetime.
6. Adjust speed from 500rpm - 1200rpm by computer, the stitch can be set between 2mm-8mm.
7. New computer system, compatible to embroidery designs. 360°random quilting and limitless multi-span and tack and jump quilting.
8. Compensation function,an effective solution for looping pattern with thick material.
9. Advanced and practical testing upper thread broken techniques,the machine is auto-stop when thread is broken.
10. When hand block the infrared system , machine will auto stop, which makes your operation safer.
11. Pattern editing is easy to learn and computer can connect with usb.
12. Ringing notice when start machine, to keep worker operation safety.
Our Services
Guaranty and Installation:
1. Give extra free spare part when ship with the machine.
2. Offer manual, pattern book, installation video and step by step instruction if meet problems.
3. If need field installation or repairing machine, client should bear tickets, food, hotel and labor cost $100/day.
4. Within a year if part is broken, the supplier can replace part for free. Damage resulting from buyer's wrong operation / actions without supplier's guide / force majeure is not in the scope of the warranty. (note bobbin case, bobbin, needles, lamp is not in the scope of the warranty)
Packaging & Shipping
All our machines are packed in elastic film or wooden case as required before shipping.The goods can be shipped 20 days after receiving advance payment.
Certificates:
FAQ
- Voltage:Our country's voltage is 380v/50HZ,220v/60HZ. Please be sure to tell us your country's rated voltage before shipping.
- Payment terms: TT:30% in advance, 70% was paid off before delivery.
Company Information
Our company is specialized in manufacturing computerized multi-needle quilting machine,computerized non-shuttle multi-needle quilting machine,cutting machine and bobbin winding machine,more than 10 kinds of products.
It passed the ISO9001 Quality Management System,and was honored as "Private Scientific and Technological Enterprises" by Dongguan city Science & Technology Bureau and Dongguan City Intellectual Property Bureau.Yuxing machines get a high credit standing at the correlative industry.
We always insist the tenet of "Honest Business,Credit First".In the condition of fierce competitive market,we make progress and get innovation constantly.We firmly believe high quality and good service are the best support for users' trust.
Welcome to visit our factory any time!!^_^
